NEBRASKA R1 SUPERCHARGER KIT

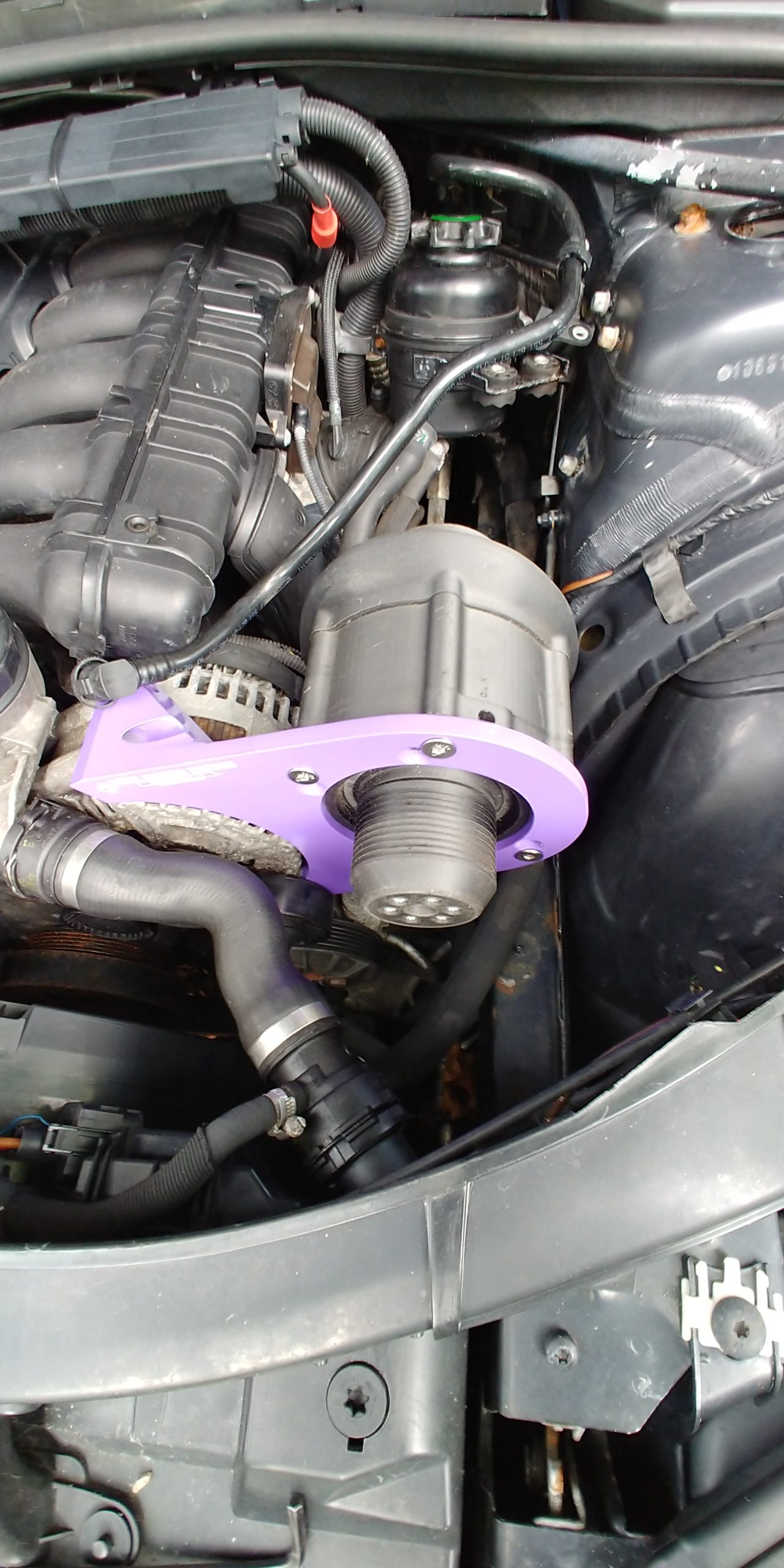

Developed by K.C. Design Concepts and based around the incredibly efficient Rotrex Superchargers, the Nebraska R1 Supercharger Kit is built for the BMW N51, N52 & N53 engines.

The Nebraska N1 Supercharger Kit utilizes the factory belt drive which allows you to preserve all the original stock belt driven engine accessories as the alternator, power steering, air conditioner, all in their original position.

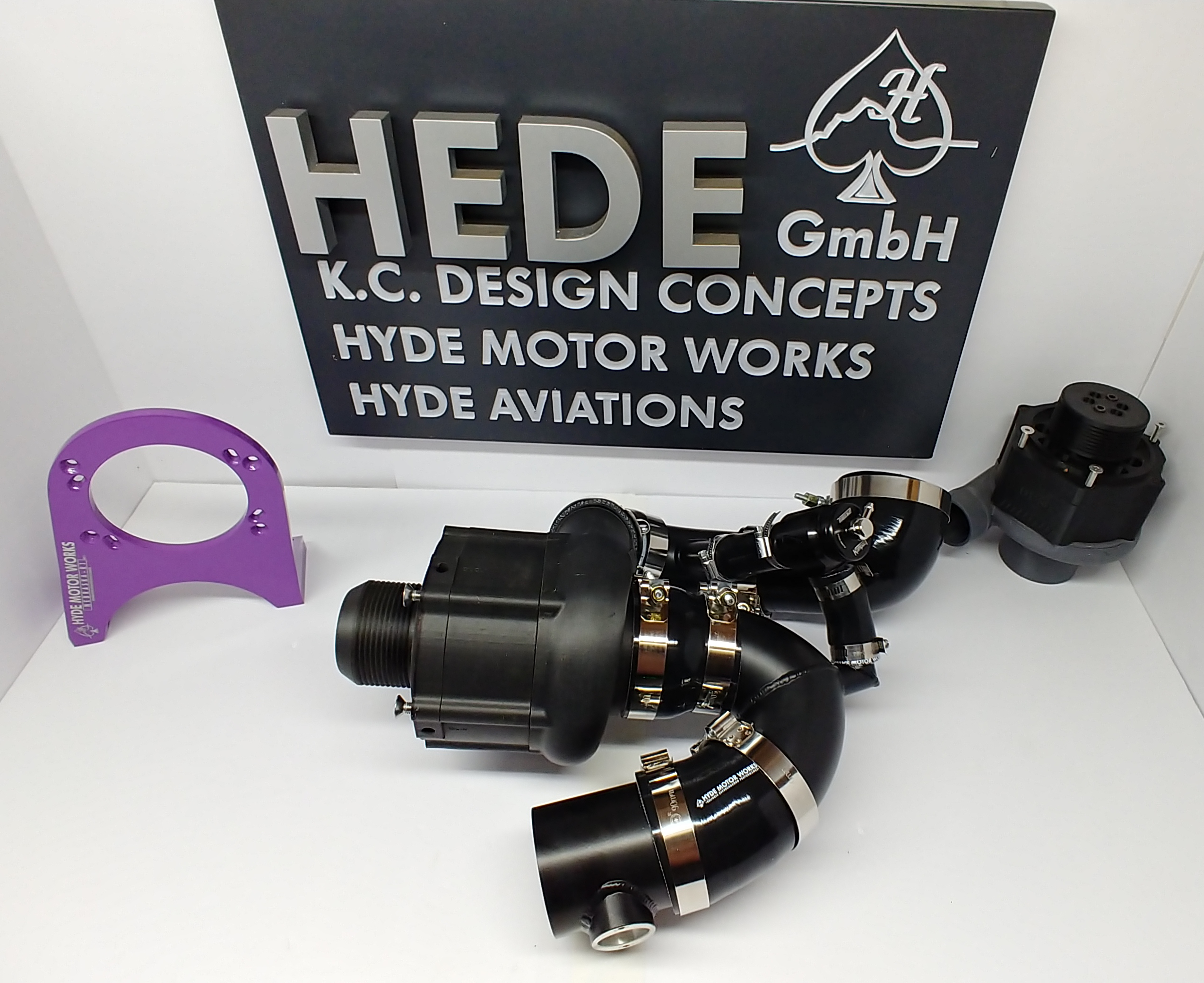

Includes:

• Complete Set of Brackets
• Rotrex C38/C38R Supercharger (If ordered with the kit)
• Pulley of Choice + Oil cooler + Oil kit + Hose kit + 1L of Rotrex Oil (If ordering a Rotrex C38/C38R Supercharger with the kit)

• Inlet and outlet silicone hoses & pipes set for the Rotrex C38/C38R Supercharger (Shipped from January 2025 to all clients who bought Nebraska R1 Orders)

• Custom Belt Drive & Idler Pulleys
• Full set of Fasteners (nuts, bolts and spacers)
• Finished in Powder Coated Retro Bronze colour (Supercharger Kit)

• Guaranteed 24 months craftsmanship warranty*
• Supercharger Warranty 12 Months from Rotrex* (When purchased through us)

Supported BMW models & cars due to using 6-cylinder BMW N51, N52 & N53 engines:

• 2006 E90 323i

• 2004-2007 E60/E61 523i

• 2006-2008 E85 Z4 2.5i

• 2007-2011 E90 323i

• 2010-2011 F10 523i

• 2009-2011 E89 Z4 sDrive23i

• 2005-2010 E83 X3 2.5si, xDrive25i

• 2005-2010 E60/E61 525i, 525xi

• 2004-2013 E90/E91/E92/E93 325i, 325xi

• 2005-2008 E85 Z4 2.5si

• 2006-2007 E90/E92/E93 325i, 325xi

• 2006-2007 E60/E61 525i, 525xi

• 2006-2008 E85 Z4 3.0i

• 2008-2011 E82/E88 125i

• 2008-2010 E60/E61 528i, 528xi

• 2009-2010 E84 X1 xDrive25i

• 2007-2013 E90/E91/E92/E93 328i, 328xi

• 2008-2013 E82/E88 128i

• 2010-2011 F10 528i

• 2004-2007 E63/E64 630i

• 2005-2007 E90/E92/E93 330i, 330xi

• 2005-2008 E65/E66 730i

• 2005-2009 E60/E61 530i, 530xi

• 2009-2015 F01 730i

• 2008-2011 E89 Z4 sDrive30i

• 2009-2011 E84 X1 xDrive28i

• 2009-2012 E87 130i

• 2010-2011 F25 X3 28i

• 2005-2008 E85/E86 Z4 3.0si

• 2006-2009 E87 130i

• 2006–2010 E83 X3 3.0si

• 2006-2010 E70 X5 3.0si, xDrive30i

• 2007-2010 E63/E64 630i

• 2007-2013 E90/E92/E93 330i, 330xi

• 2006-2010 E60/E61 523i

• 2009-2011 F10/F11 523i

• 2007-2013 E90/E91/E92/E93 325i

• 2006-2010 E60/E61 525i

• 2009-2011 F10/F11 528i

• 2007-2010 E60/E61 530i

• 2007-2010 E63 630i

• 2007-2013 E90/E91/E92/E93 330i

• 2011-2013 F10 530i

NOTES:

• The Supercharger is not included in the kit unless ordered, if buying the Supercharger as a bundled option with our kit, you can let us know the pulley size you wish to have.  If you are an existing client, you can email us to order the supercharger separately. Otherwise, you are advised to use the given part number for the supercharger and order the supercharger locally.

• To use the full potential of the larger Rotrex Superchargers, the engine must be built to hold high boost, the stock engine should not be pushed beyond 10PSI.*
• Rotrex Supercharger comes with its separate 1 Year Warranty covered by Rotrex**
• The C38-92 is the same as the C38-91 supercharger with the exception that it has a 90mm (3.5″) inlet diameter instead of the standard 70mm (3″)

To complete the installation on any of the setups, you will also require the following additional parts:

• Rotrex C38/C38R Supercharger with recommended accessories (Sold separately with Rotrex based kits, check the technical specifications for part numbers)

• an Intercooler Kit with silicone pipes and hose clamps (can be sold separately)

• vacuum hose

• an high flow air filter

• a boost gauge

• a recirculating by pass valve and

• proper tune.

Please consult the installation guide for more information.

For Tuning, We recommend using any of our selected tuner partners.
Tuning Packages may also be offered in our shop.

Please check our Product Finder for all parts available in our shop necessary for this setup.
For more information on the Nebraska R1 Supercharger Kit, please check the overview on Our Products page.
